red-y compact series (Digital rotameter)
Attribute:

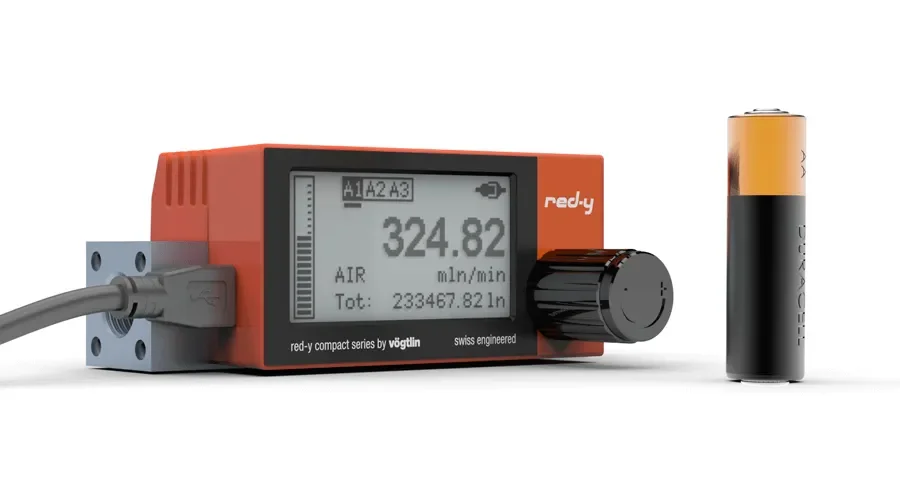

The red-y compact series mass flow meters and regulators provide portability, flexibility, and convenience The advanced compact unit can be equipped with various modules, including battery, power, alarm, or analog/pulse options. It is available in stainless steel or aluminum and features an intuitive backlit touch screen display, USB connectivity, and precise, reliable operation.
Share
Touch Technology
The touch display offers intuitive navigation. All device parameters can be adjusted through the integrated menu. Automatic display orientation adjustment via position sensor.
High accuracy & dynamic performance
The flow meters offer high accuracy and dynamic range:
Accuracy ±1% of full scale
(dependent on application/range)
Dynamic range 1 : 100
Advanced Alarm Functions
The new red-y compact features 3 configurable alarms. The following alarm modes are available: Max Alarm, Min Alarm, Range Alarm, and Totalizer Alarm
The alarms can be configured with different parameters: Normally open (NO), normally closed (NC), hysteresis, reset (automatic/manual or via input contact), alarm delay, and alarm duration.
High-precision Valve
In the red-y compact regulator / all-in version with manual valves, high-precision needle valves are used. These valves allow fine adjustment of the flow rate.
The new red-y compact 2 series is available with an alarm function module.
The models GCS (red-y compact 2 switch) and GCA (red-y compact 2 all-in) provide 3
configurable alarm relays. The following triggers are available: High alarm, low alarm,
window alarm and totalizer alarm.
The alarm module can be retrofitted on existing red-y compact 2 meters & regulators.
Features:
» 3 alarm contacts
(relays that can switch up to 1 amp, 30 Vdc)
» 2 optical isolated input channels
(to optionally reset an alarm remotely)
» Every alarm contact separately settable as high,
low, window or totalizer alarm
» Hysteresis, delay and alarm duration time all
customer configurable
» Built-in 8…30 Vdc power supply, polyfuse protected
» 2 meter fly lead cable included
» All variables adjustable locally through touch screen
Modification kit for GCM/GCR (SN > 300000):
Replacement of battery or power module with alarm
module / cable length 2.0 m
Article-N° 328-2190
Alarm settings
All variables adjustable locally through touch screen
| Functions | |
| Logic functions | High alarm, low alarm, window alarm, totalizer alarm |
| Reset functions | Auto, manual, external input 1/input 2 |
| Power input | |
| Voltage supply range | 8...30 Vdc (power supply hereafter refered to as the 24 Vdc power supply) |
| Max. current | 300 mA |
| Protection input | Polyfuse (trip current > 500 mA) and reverse polarity protected |
| Switch ratings switch 1 + 2 (SPST hard contact) / switch 3 (SPDT contact) | |
| Maximum voltage | 30 Vdc |
| Relais lifetime | > 5 million cycles |
| Maximum current | Switch 1 + 2 (SPST hard contact): 0.5 A / Switch 3 (SPDT contact): 1 A |
| Inputs 1 + 2 (opto-couplers) | |
| Voltage range (polarity sensitive) | 5…30 Vdc (@ 5 mA max.) |
| Min. recommended pulse width | 100 msec (sample interval 20 msec) |
Find detailed information in the red-y compact 2 series operating instructions
